Low Voltage Reeling Crane Cable

0.6/1kV (N)7YRDGOEU-J ETFE/EPR Insulation Reeling Crane Cable

Design features
Conductor：Bare electrolytic copper, very finely stranded, class FS
Insulation：ETFE for good mechanical and electrical characteristics (see also DIN VDE 0207)
Core identification：Black colored insulation with numbers printed in white, earth conductor green-yellow
Core arrangement：Laid-up in layers
Inner sheath：Basic material EPR, color: black
Outer sheath：Basic material EVA, color: black
Marking EASYFLEX (N)7YRDGOEU-J (nr. of cores)x(cross-section) 0,6/1 kV

Thermal parameters
Max. permissible temperature at conductor：90 °C
Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation：min -50 °C ; max +80 °C
Ambient temperature in fully flexible operation min -35 °C ; max +80 °C

0.6/1kV (N)SHTOEU-J/-O EPR/CPC Insulation Shield Reeling Cable

Electrical parameters
Rated voltage：0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC：0.9/1.8 kV
AC Test Voltage：3.5 kV (5 Min.)
Data transmission：With special elements: ASI-Bus, Profibus, CAN-Bus, Industrial Ethernet.
Alternatively: Fibre optics for transmitting all bus protocols.
Weather resistance:Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture.
Water resistance：Given and verified in long-term tests

Design features
Conductor：Electrolytic copper tinned, very finely stranded class FS
Insulation: PROTOLON MS Special compound based on high-quality EPR (min. 3GI3); improved mechanical and electrical characteristics.
Core identification：Best identification as a result of light colored insulation with numbers printed in black for power and control cables, earth conductor green-yellow colored.
Individual screen：Braid screen made of tinned copper wires. Transfer impedance optimized at 30 MHz.
Surface covered: at least 60 % for shielded cores; at least 80 % for twisted and shielded pairs.
Core arrangement：Laid-up in a maximum of 3 layers
– Inner sheath: High grade special compound based on PCP, color: yellow;

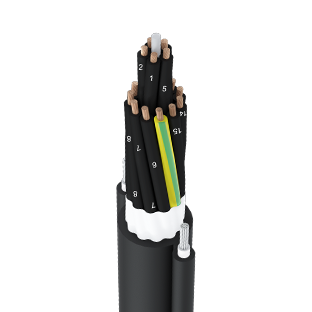

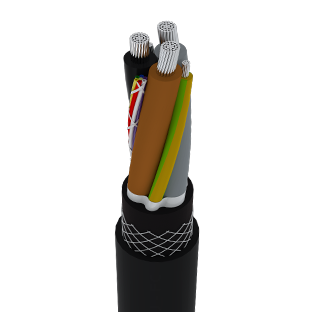

300/500V (N)SHTÖU– FO Crane Reeling Rubber Cable with Optical Fiber Core

Design features
ONDUCTORS : Electrolytic, stranded, plain annealed copper wire Class 6 according to IEC 60228
INSULATION : Cross linked polyethylene compound (XLPE) or PVC on request
CORE IDENTIFICATION : Black cores with white numbers
LAY UP SUSPENSION : Cores laid up in concentric layers , over lay up textile tape wrapped
SUPPORT : Galvanized steel wire ropes at both sides
OUTER SHEATH : Special PVC Compound
COLOR : Black

RATED VOLTAGE : 300 / 500 V
AC TEST VOLTAGE : 2000 V
MIN BENDING RADIUS : 10 x D (fixed application) 20 x D (mobile application)
CURRENT CARRYİNG CAPACITY : According to DIN VDE 0298-4
WORKING TEMPATURE :
FIXED INSTALLATİON : – 40 °C up to + 70 °C
MOBILE OPERATION : – 25 °C up to + 70 °C
MAX. TENSILE LOAD ON CONDUCTOR : 15 N / mm2
MAX. SUSPENDED HEIGHT : 80 meters
PULLING FORCE : 2100 N for each steel core

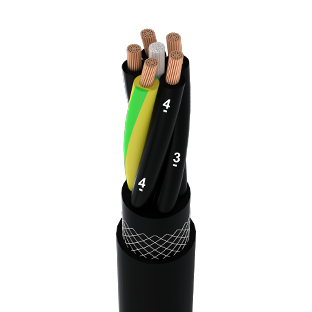

0.6/1kV PUR-HF D12Y11YU11Y-JZ for Spreader Vertical Reeling Cable

Electrical parameters
Rated voltage：0.6/1 kV (600/1000V) Max. permissible operating voltage AC：0.7/1.2 kV
Max. permissible operating voltage DC：0.9/1.8 kV AC Test Voltage 4 kV (5 Min.)
Current Carrying Capacity description：Acc. to DIN VDE 0298-4
Design features
Conductor：Plain copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
Insulation：Halogen free compound, based on polyester
Core identification：White with black numbers, similar to HD 308
Core arrangement：Central aramid strain element; cores twisted in layers with short length of lay
Inner sheath：Polyurethan, halogen free, flame retardant
Reinforcement：Open braid, reinforced
Outer sheath：Polyurethane, halogen free, flame retardant, opaque; Colour: black
Marking White imprint:
D12YST11YU11Y-JZ PUR-HF SPEZIAL (number of cores) x (cross-section) DRAKA DE (week/year)

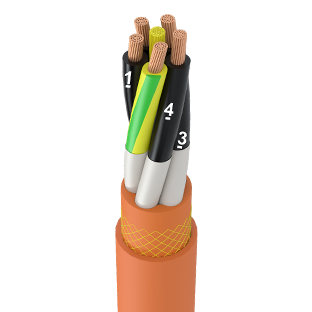

0.6/1kV D12Y11YU11Y-J/O PVC Crane Reeling Control Cable

Design features
Conductor：Plain copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
Insulation：Halogen free compound, based on polyester
Core identification：Up to 5 cores: colored in accordance with DIN VDE 0293-308 From 6 cores: natural color with black numbers
Core arrangement：Central textile carrier unit; cores twisted with short length of lay
Inner sheath：Polyurethan, halogen free, flame retardant
Reinforcement：Open braiding of support
Outer sheath：Polyurethane, halogen free, flame retardant, opaque; Colour: black
Marking White imprint:
TROMMELFLEX PUR-HF -J/-O (number of cores) x (cross-section) (week/year)
Electrical parameters
Rated voltage：0.6/1 kV (600/1000V)
Max. permissible operating voltage AC：0.7/1.2 kV
Max. permissible operating voltage DC：0.9/1.8 kV AC Test Voltage 4 kV (5 Min.)
Current Carrying Capacity description：Acc. to DIN VDE 0298-4
Application: Flexible low voltage reeling cable for application under high mechanical stresses.

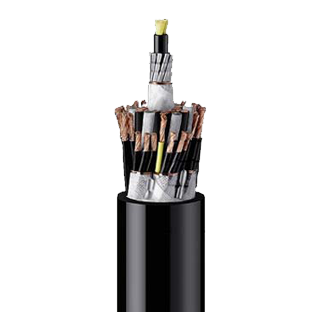

0.6/1kV EPR/PUR Insulation 3GSLTOE-J/-O Cable Spreader Basket Crane

Electrical parameters
Rated voltage：0.6/1 kV (600/1000V)
Max. permissible operating voltage DC：0.9/1.8 kV
AC Test Voltage：3.5 kV (5 Min.)

Design features
Conductor： Bare Electrolytic copper, extremely fine stranded, class FS
Insulation：EPR for application in ambient temperatures down to -40°C
Core identification：Optimal identification as a result of light colored insulation with numbers printed in black; protective earth conductor green/yellow
Individual screen：Braid screen made of tinned copper wires.
Core arrangement：Core assembly: cores laid-up into bundles;
Bundle assembly: bundles laid-up around the central support element.
Support element ：Aramide threads woven round lead ball cords, arranged centrally. The breaking load is rated to provide a safety factor of 5 when the cable is suspended vertically for 50 m. In case of bigger cross-section and higher number of cores, the support element is a round rubber filler with Aramid threads.
Outer sheath：Special PUR compound;
Marking：SPREADERFLEX 3GSLTOE-J (number of cores) x (cross-section)

1.8/3 kV, 8.7/15 kV, 12/20 kV Medium Voltage Reeling Cable

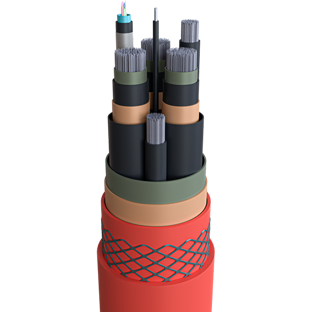

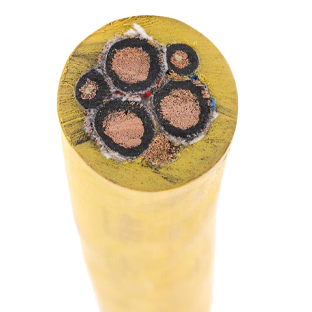

Round Medium Voltage (N)TSCGEWOEU Reeling Flexible Cable with fiber optic

Design features
Rated voltage： 3.6/6 kV 6/ 10 k V 8. 7/ 15 k V 12/ 20 k V
Conductor：Plain copper, fine stranded class 5 according to DIN EN 60228 / VDE 0295
Insulation：Rubber, compound type EPR-SHS EI6, super-clean
Electrical field control Inner and outer layer of semiconductive rubber compound
Core arrangement：Cores layed up around conductive filler with aramid rope in the center, earth conductor split into the interstices.
Inner sheath：Rubber,
Reinforcement：Polyester anti-torsion braid
Outer sheath Abrasion and tear proof special rubber compound, quality at least 5GM5 acc. to DIN VDE 0207
Sheath colour: red or black with yellow stripe
Marking Embossed: (N)TSCGEWOEU (number of cores) x (cross-section)

Application for high travel speeds, dynamic tensile loads, multiple changes of direction into different planes, churning on running over rollers and torsional stresses.

Round Medium Voltage (N)TSKCGEWOEU EPR Insulation Flexible Reeling Cable

Electrical parameters
Rated voltage： 3.6/6 kV 6/ 10 k V 8. 7/ 15 k V 12/ 20 k V
Max. permissible operating voltage AC ：4.2/7.2 kV 6. 9/ 12 k V 10. 4/ 18 k V 13. 9/ 24 k V
Max. permissible operating voltage DC：5.4/10.8 kV 9/ 18 k V 13. 5/ 27 k V 18/ 36 k V
AC test voltage ： 11 kV 17 k V 24 k V 29 k V

Design features
Conductor：Conductor and earth conductor made of electrolytic copper tinned,
High grade special compound based on high-quality EPR (at least 3GI3);
Electrical field control：Inner semiconductive layer of EPR, outer semiconductive layer of modified NBR,
Core identification：Natural coloured insulation with black semiconductive layer
Optical Fiber：Fibre core diameter: 62.5, 50 or 9μm; diameter across the cladding: 125μm; diameter over the coating: 250μm.
Design available with 6,12, 18 or 24 fibres.
Fiber coding：Specially developed color code for identification of the individual fibres
Fiber covering：Hollow core with filling compound, Basic material: ETFE, Compound: 7YI 1, Natural color

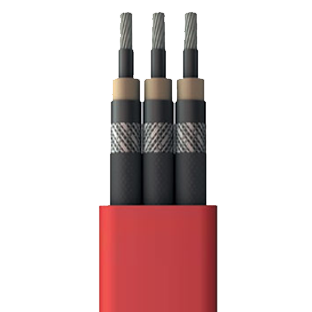

Flat Medium Voltage EPR Insulation Flexible Reeling Cable ( N) TSFLCGEW OEU

Electrical parameters
Rated voltage： 3.6/6 kV 6/ 10 k V 8. 7/ 15 k V
Max. permissible operating voltage AC ：4.2/7.2 kV 6. 9/ 12 k V 10. 4/ 18 k V
Data transmission：A special cable design with fibre-optics can be found in the product range

Design features
Conductor：Electrolytic copper tinned, finely stranded, class F
Special compound based on high-quality EPR (at least 3GI3); improved mechanical and electrical characteristics
Electrical field control Inner semiconductive layer of EPR, outer semiconductive layer of modified EPR, removable in
warm condition
Core identification：Natural coloured insulation with black semiconductive layer
Core arrangement：Parallel core arrangement; earth conductor splitted and concentrically distributed around each core
Special compound based on CR, quality at least 5GM5, red color
(number of cores)x(cross-section) (rated voltage) (year of manufacture) (serial number)

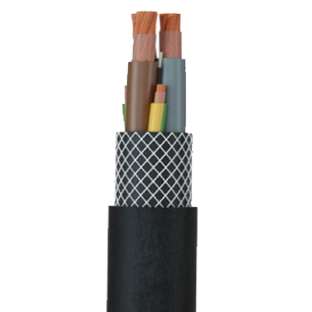

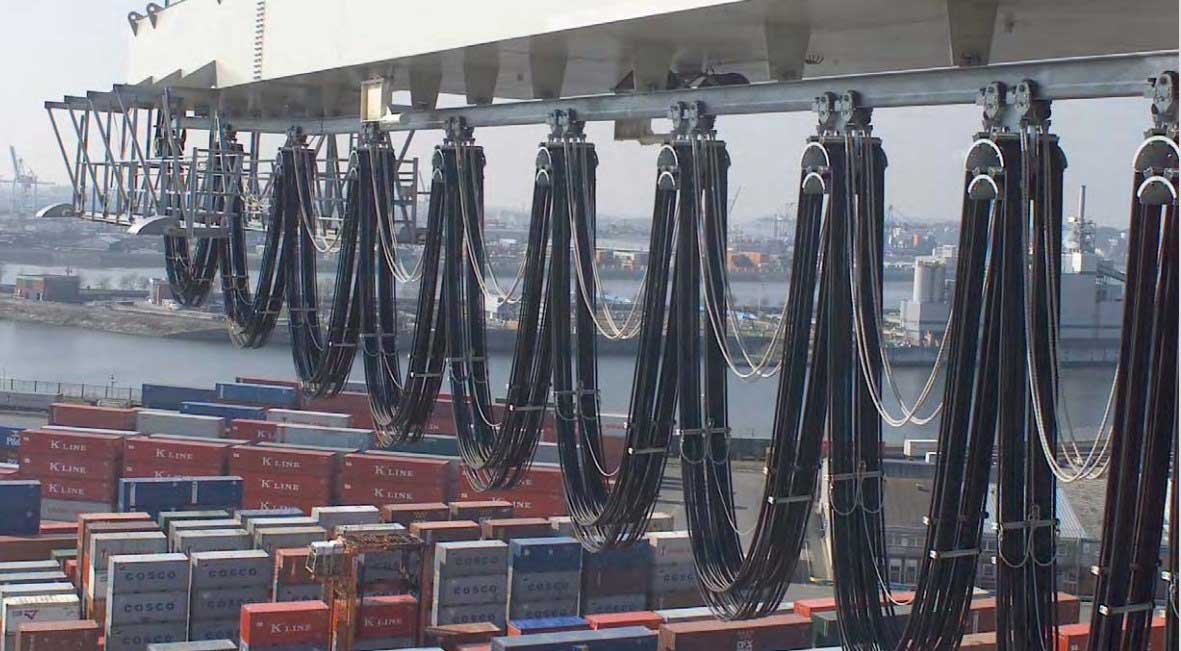

Round or Flat Low Voltage Cable for Festoon Crane Operation

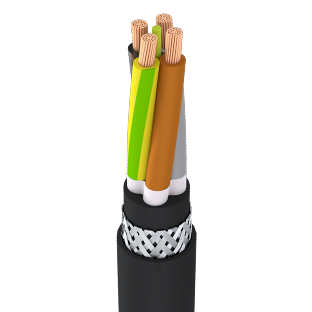

0.6/1kV PUR-HF D12YC11Y-J/O Festoon Cable

Electrical parameters
Rated voltage:0.6/1 kV (600/1000V)
Max. permissible operating voltage DC:0.9/1.8 kV AC Test Voltage:4 kV (5 Min.)
Current Carrying Capacity description:Acc. to DIN VDE 0298-4
Design features
Conductor:Plain copper, flexible class 5
Insulation:Halogen free compound, based on polyester
Core identification:Up to 5 cores
Core arrangement:Cores/Pairs twisted with short length of lay around central element
Inner sheath:Due to technical reasons some of the cross section are produced with an additional polyurethane inner sheath
Screen over inner sheath:Braid of tinned copper wires
Outer sheath:Polyurethane, halogen free, flame retardant

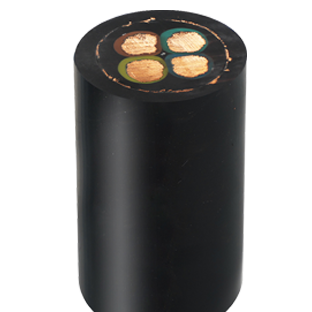

(N)GRDGCGOEU-J, (C)-FC (N)GRDGCGÖU-J Festoon Cable

Electrical parameters
Rated voltage:0.6/1 kV (600/1000V)
Design features
Conductor:Bare electrolytic copper conductor, finely stranded, class 5.
Insulation： high grade special compound based on high-quality EPR (at least GI3)
Core identification:Light colored insulation with numbers printed in black for power and control cables, earth conductor green/ yellow
Core arrangement:Up to 10mm²: 4-core design;
from 16mm² on: three main conductors, earth conductor splitted into three parts and placed into the interstices
Inner sheath Basic material EPR
Screen over inner sheath:Braid screen made of tinned copper wires,
Outer sheath:Basic material PCP

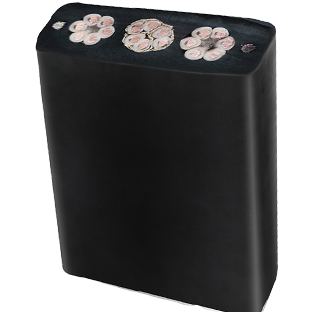

300/500V 600V Flat NGFLGOEU-J/-O Festoon Cable

Electrical parameters
Rated voltage:300/500V (600V)
Max. permissible operating voltage AC:0.7/1.2 kV
Conductor:Electrolytic copper, not tinned:
-up to 25 mm²: extremely finely stranded, class 6
-above 35 mm²: finely stranded, class 5
Basic material EPR, Rubber
Core identification:Up to 5 cores, colored: green/yellow (or black for version…-O) black, blue, brown, grey; For more than 5 cores: black with white colored numbers
Individual screen Braid screen made of tinned copper wires
Surface covered: approx. 60% for shielded cores, approx. 80% for twisted and shielded pairs.
Core arrangement:Parallel, for more than 12 cores: parallel bundles
Outer sheath Basic material CR, Rubber compound

3GSLTOE-J/-O Cable for Basket Operation

(N)GRDGOEU-J/-O Cable Chain Operation
